Drives

AC 30

• The AC30 variable speed drive range has been designed for simple open-loop pumps and fans through to closed-loop process line applications. It’s flexible and highly modular construction enables a wide range of communications and I/O modules to be easily added as required.
• Integrated macros for a range of applications and PLC functionality enable more capable users to create sophisticated control that would previously have required a separate PLC
• Designed for operation in environment class 3C3 and 3C4 for Hydrogen Sulphide (H2S) as standard (tested at 25 ppm for 1200 hours), temperatures up to 50 °C with optional integrated EMC filter to C2 1st environment and DC link choke to reduce line harmonics
• AC30 also complies with RoHS substance restrictions in accordance with EC Directive 2011/65/EU.
• Multiple PID control loops can be programmed to monitor process variables and adjust the speed of the motor accordingly to achieve the required variable setpoint.

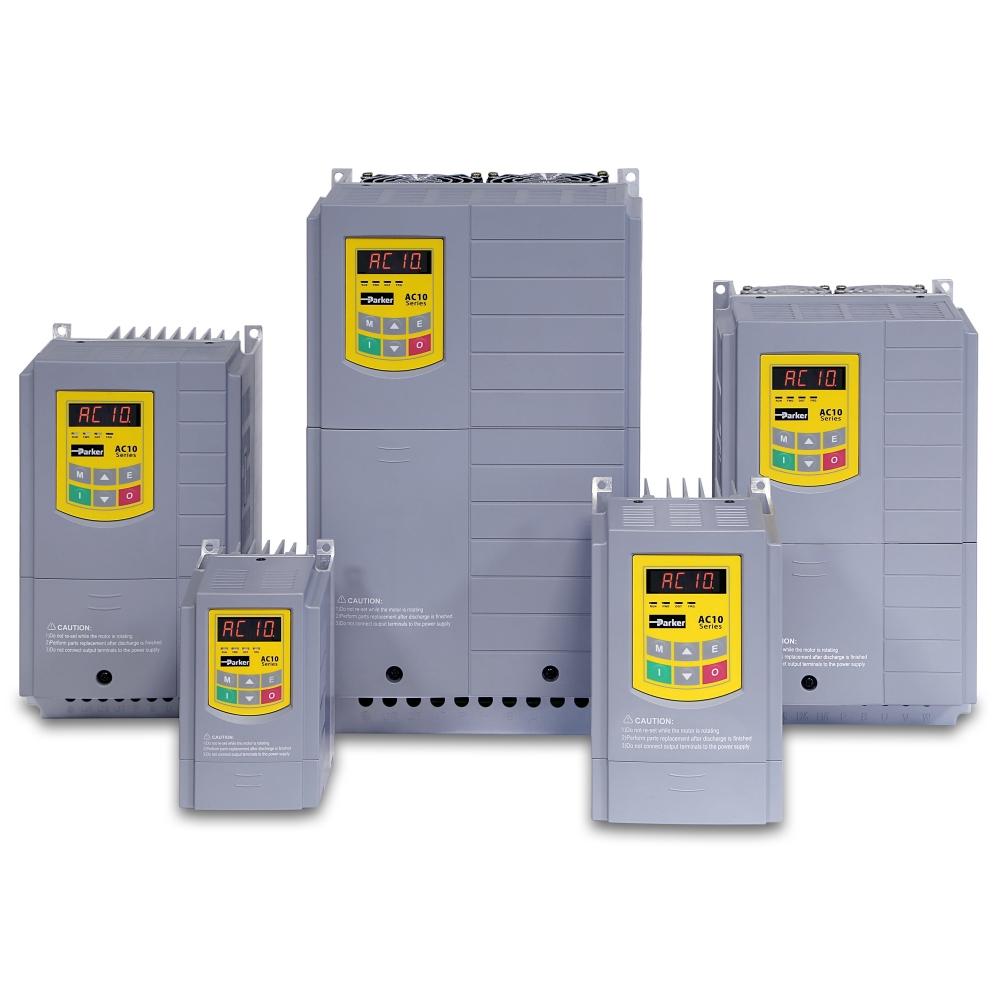

AC 10

• The AC10 variable speed compact drive is a simple, reliable and economical solution to every-day motor control applications requiring speed or torque control within the power range of 0.2kW to 180kW.
• Having compact dimensions and features normally only associated with higher specification AC drives, including, sensorless vector mode, output frequency up to 590 Hz, 3 phase 400VAC supplies in all 5 frame sizes and a full 150 % overload at 0.5 Hz for 1 minute, the AC10 provides an optimised solution for OEM machine builders who are looking for a compact, cost-effective, energy saving variable speed ac drive without compromising on performance.
• AC10 drives are designed to reduce the time and effort required to install, setup and commission through its easy to use integrated keypad. Minimal wiring requirements and two easily accessed terminal rails make AC10 fast and simple to install, having you up and running in no time at all.
• AC10 drives are able to withstand even the most arduous class 3C3 environment which many other AC drives in this class would struggle with, allowing you to operate the AC10 with the utmost confidence in more applications
• AC10 drives come complete with an ergonomic operator keypad as standard, featuring 4 LED drive status indicators, a 4 digit 7 segment LED display and a tactile membrane style keypad.

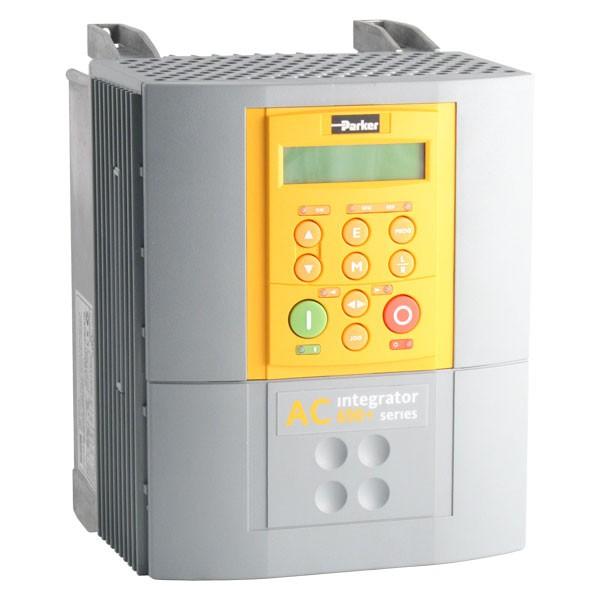

690 drive

• AC 690 is designed to meet the requirements of all variable speed drive applications up to 1500HP, from simple single motor speed control through to the most sophisticated integrated multi-drive systems
• These Drives are microprocessor based 3-phase drives used to control the speed of standard 3-phase induction motors. An extensive range of configuration options are available to the user. A menu structure controlled using the man-machine interface (MMI) allows access to various options and adjustable parameters.
• Following features are provided in 690: Converts AIN1-4 in to high resolution (12- bit plus sign) non-isolated analog inputs, 5 configurable fully-isolated digital inputs/outputs (for PLC applications), individually selectable to input or output, Supplies variable voltage, isolated encoder power supply, Decoding logic to interface the encoder to the microprocessor

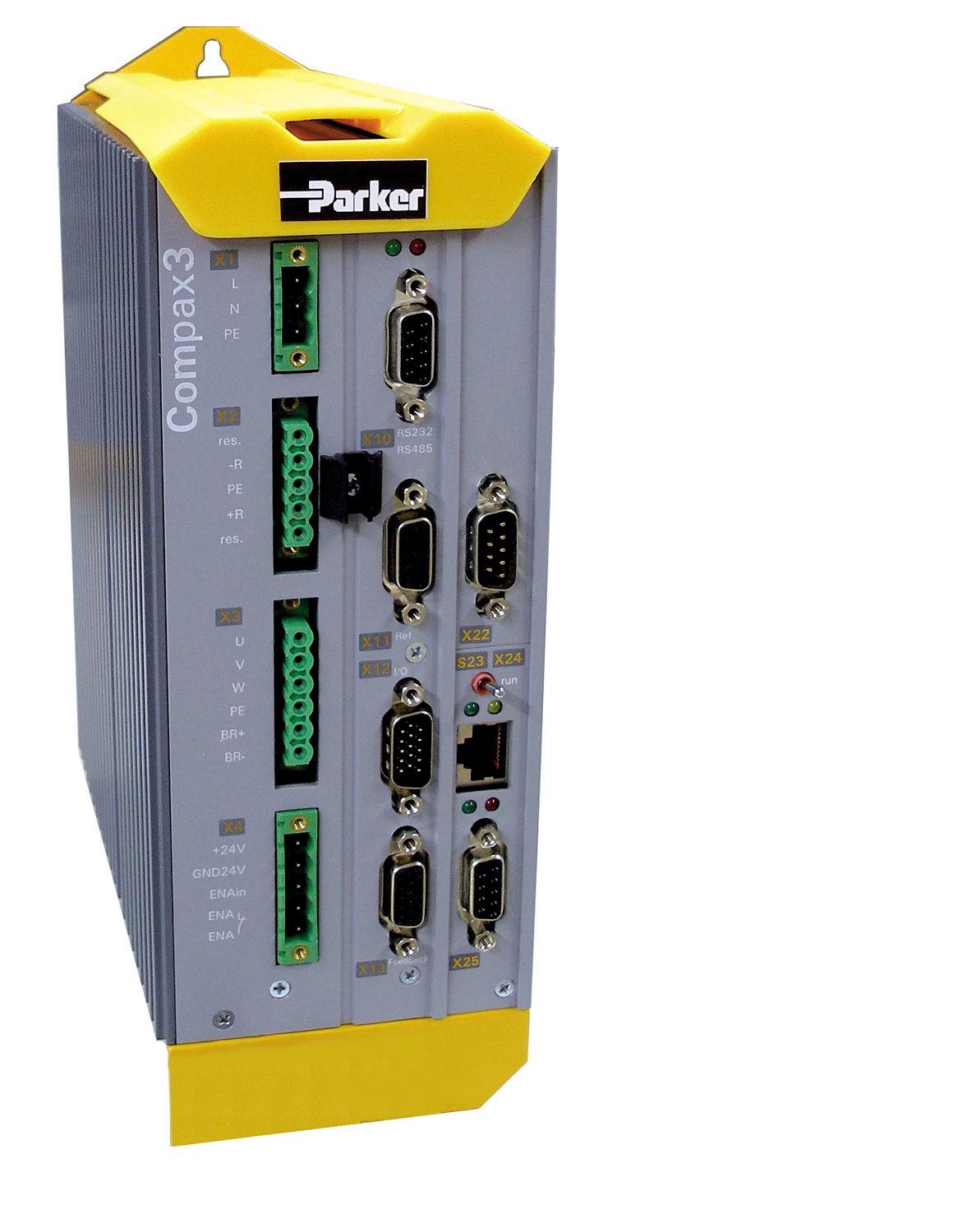

Compax drive

• 120 – 480 VAC power input range with Continuous current output from 2.5 A (rms) to 155 A (rms).
• SSI encoder as a source for gearing, cam shapes and external position measurement.
• Fully programmable IEC61131-3 single-axis drive/controller and virtual master.
• Optional communication interfaces (CANopen, Profibus DP, DeviceNet, ETHERNET Powerlink, EtherCAT, TCP/IP) also Wide selection of master sources supported
• Compax3 products are easily configurable via RS232/485 using Parker’s C3 ServoManager™ software running on a PC or by utilizing the optional BDM keypad interface module.
• Compax3 Software is a User-friendly, wizard-based drive configuration tool with navigation tree. It is an optimization tool with Numerical and graphical status and error displays, Four-channel oscilloscope with ASCII and CSV export capability and input simulation. It also has IEC Debugger and Cam Designer.

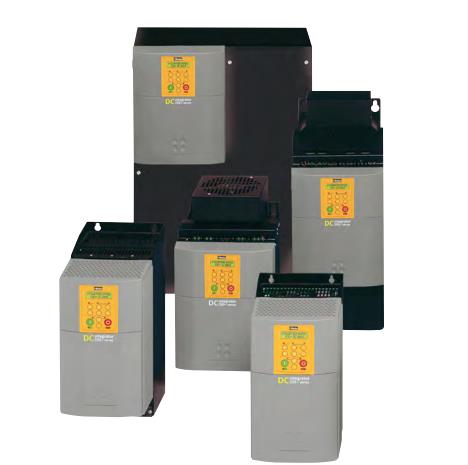

590 drive

• The 590 drive controls the dc motor with the use of Control Loops - an inner Current Loop and an outer Speed Loop.
• The Parker 590 Integrator series of highly advanced DC drives meets the demands of the most complex motor control applications. Extensive application software (including winder control as standard) together with Function Block Programming and configurable I/O creates a total drive system in a single module.
• Available in current ratings from 15 Amps to 2700 Amps. DRV version available from 15 to 165 Amps.

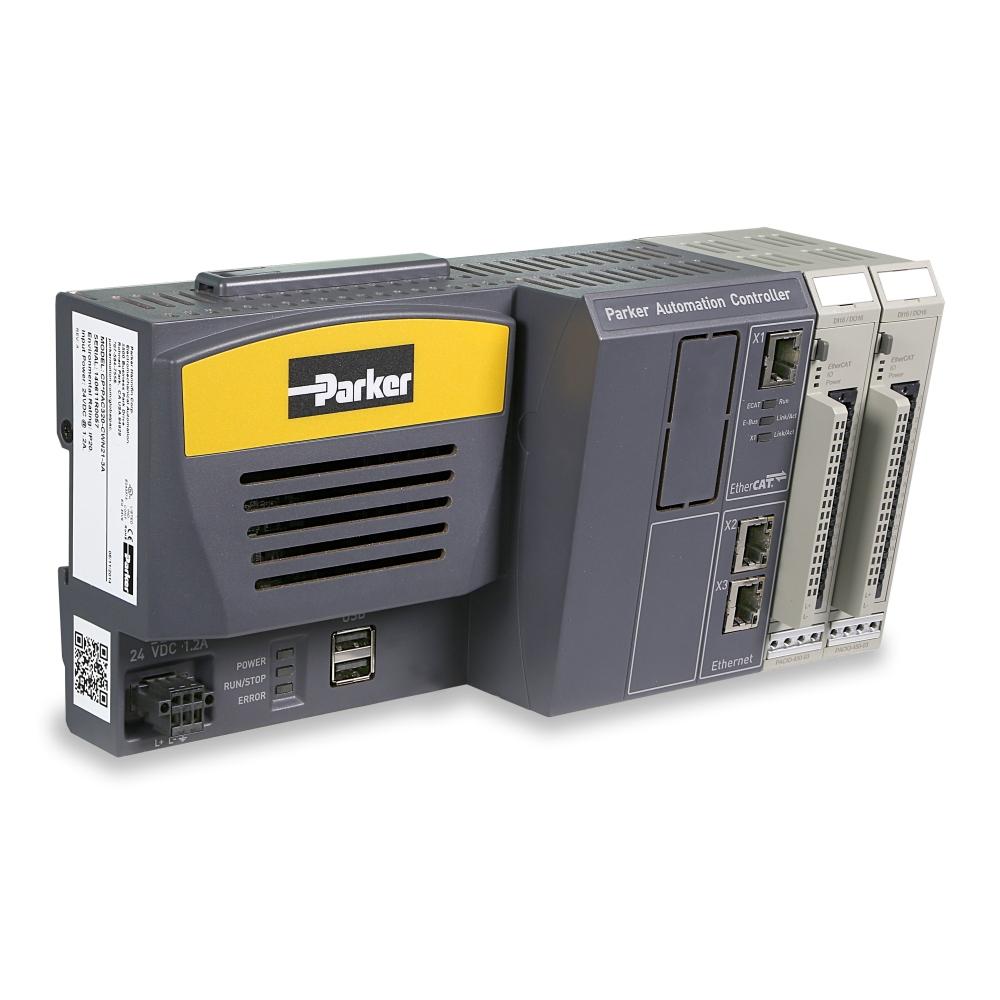

PAC Controller

• Designed for the global machine market, the Parker Automation Controller (PAC) combines advanced logic, signal handling, multi-axis motion (camming, gearing, robotics and CNC), easily mountable din rail solution, IEC61131 programming and visualization into one performance-driven solution.
• This programmable automation controller comes equipped with a native, uninterrupted EtherCAT bus for high-speed I/O and motion control, a modular interface slot for 3rd Party device communication, standard Ethernet and USB ports plus onboard SD program storage.
• Programmed with the Parker Automation Manager software, OEMs can produce efficient, high-performance control systems based on the IEC 61131-3 and PLCopen Motion standards.
• The motion controller's solid state design is precisely engineered for demanding industrial environments. The powerful, yet energy efficient Intel Atom N2600 processor allows for fanless operation while supporting dual-cores, 64-bit instructions, and Hyperthreading technology. Coupled with the removable, solid state SD storage media, all moving parts have been eliminated for a robust, industrial grade control solution.
• The PAC I/O System comprises a variety of modules for digital, analog and temperature signals as well as communication interfaces. The modules connect directly to the controller via the built-in EtherCAT bus for local architectures and are extended to remote locations via the extender and bus coupler modules, thus supporting both local and distributed I/O architectures.
