SCADA & HMI

SCADA & HMI

  • SCADA

    • A. SIEMENS

      1. SIMATIC WinCC
      • SIMATIC WinCC® is a scalable process visualization system (SCADA) that is graduated by price and performance, with efficient functions for controlling automated processes.
      • With SIMATIC WinCC, “perfect process visualization“ stands for complete operating and monitoring functionality under Windows for all industry segments – ranging from simple single-user systems through to distributed multi-user systems with redundant servers and the structure of a cross-site solution including Web clients.
      • One of the special features of WinCC is its total openness. It can be readily used in combination with standard and user programs, creating HMI solutions which precisely meet practical requirements.

    • B. GE

      1. CIMPLICITY
      • GE CIMPLICITY provides superior reliability and availability for the most demanding industrial applications— maximizing uptime and continuous control for increased productivity and profitability.
      • Powerful APIs allow you to develop your own direct interfaces with the data and alarm information collected, managed, and maintained by GE CIMPLICITY. This design provides seamless integration of custom or third-party applications.
      • GE CIMPLICITY delivers reliability, high availability and performance.

    • C. SCHNEIDER

      1. VIJEO CITECT
      • Vijeo Citect is designed for control engineers, production managers and system integrators who are looking for powerful and flexible SCADA fully integrated with the Schneider equipment’s
      • It is tightly synchronized with the Unity PLCs applications in order to provide a consistent object view of the system.
      • An intuitive visualisation tool for analyzing alarms and trends data that sits in the Vijeo Citect system itself delivers actionable insight to the operator faster.
      • Application: Water and Waste Water, Food & Beverages, Mining and Minerals, Oil & Gas, Metals, Power.
  • HMI

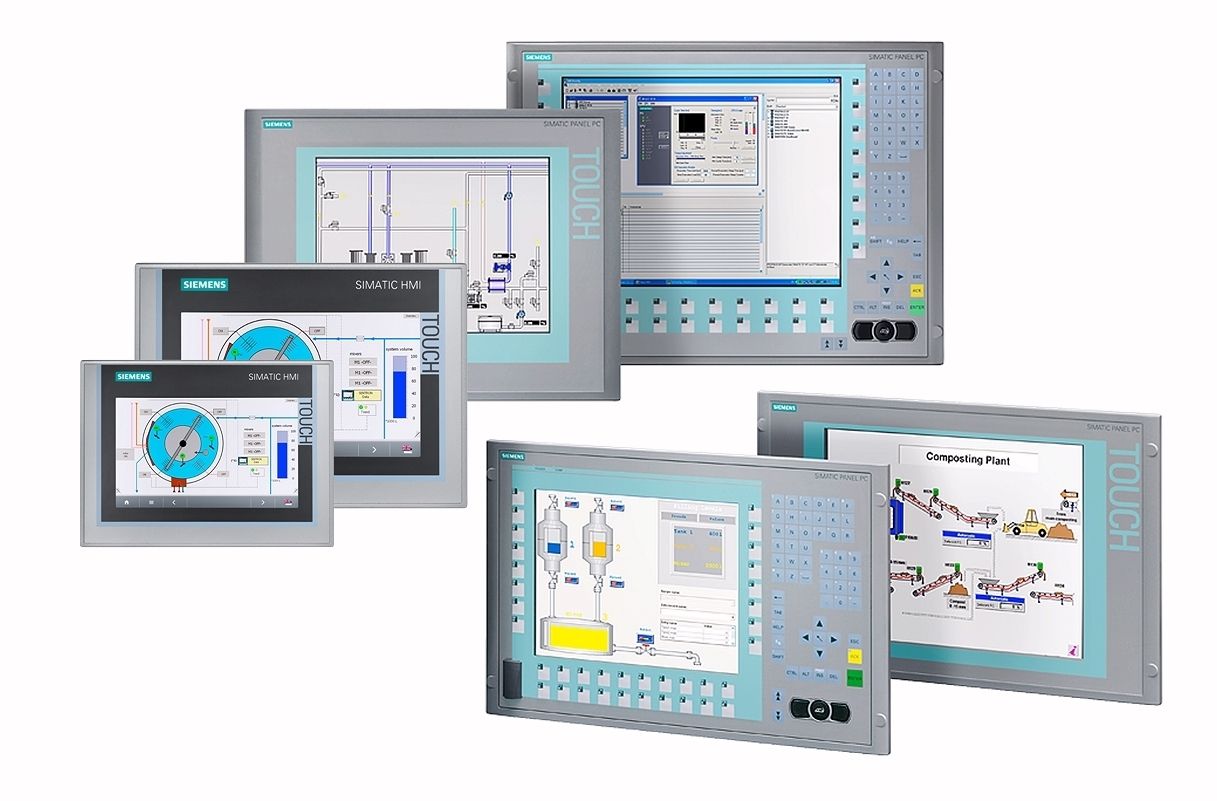

    • A. SIEMENS

      1. KTP 300

      3.6" membrane keyboard with 10 freely configurable tactile keys ∙ Mono (STN, black/white) ∙ 87 mm x 31 mm (3.6") ∙ Backlight color programmed (white, green, yellow or red) ∙ Resolution: 240 x 80 ∙ 250 tags ∙ 50 process screens ∙ 200 alarms ∙ 25 curves ∙ 40 KB recipe memory ∙ 5 recipes, 20 data records, 20 entries

      2. KTP 600 Basic PN

      6" touch screen with 6 tactile keys ∙ Color (TFT, 256 colors) or Mono (STN, gray scales) ∙ 115.2 mm x 86.4 mm (5.7") Portrait or landscape ∙ Resolution: 320 x 240 ∙ 500 tags ∙ 50 process screens ∙ 200 alarms ∙ 25 curves ∙ 40 KB recipe memory ∙ 5 recipes, 20 data records, 20 entries Product overview 1.5 Basic HMI panels S7-1200 Programmable controller System Manual, 04/2012, A5E02486680-06 27 Basic HMI Panel Description Technical data

      3. KTP 1000 Basic PN

      10" touch screen with 8 tactile keys ∙ Color (TFT, 256 colors) ∙ 211.2 mm x 158.4 mm (10.4") ∙ Resolution: 640 x 480 ∙ 500 tags ∙ 50 process screens ∙ 200 alarms ∙ 25 curves ∙ 40 KB recipe memory ∙ 5 recipes, 20 data records, 20 entries TP 1500 Basic PN

      4. KTP 1500

      15" touch screen ∙ Color (TFT, 256 colors) ∙ 304.1 mm x 228.1 mm (15.1") ∙ Resolution: 1024 x 768 ∙ 500 tags ∙ 50 process screens ∙ 200 alarms ∙ 25 curves ∙ 40 KB recipe memory (integrated flash) ∙ 5 recipes, 20 data records, 20 entries

    • B. SCHNEIDER

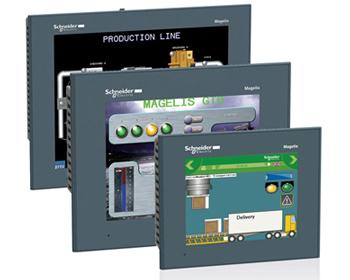

      1. Magelis HMIGTO
      • TFT 65 Kcolors for all screen sizes to allow good monitor conditions for operators.
      • Availability of a 7” wide display offering up to 40% more graphic space than standard 5”7 for equivalent price
      • Embedded Ethernet for all terminals with wide choice of web services (Webgate, Ftp server, Diag server) and 2 Serial lines for communications with devices on the machines
      • Magelis GTO operating now up to 55°C for hot environment.

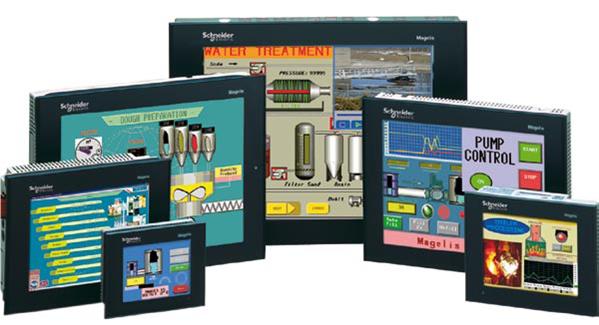

      2. Magelis HMIGXO
      • Touch panel screen, 7 inch, Colour TFT LCD
      • Memory: Flash (NAND) 16 MB Application run (SDRAM) 64 MB Back up of data (Non-Volatile SRAM (NVSRAM)) 128 kB
      • 8 levels of brightness via touch panel with natural cooling
